MANUAL

SOLO

Version February 2003.

ASSEMBLY

OPERATION

MAINTENANCE


http://flieg.com/fresh.breeze/


TABLE OF CONTENTS
Page

TABLE OF CONTENTS
02
ASSEMBLY THE MOTOR
TECHNICAL DATES
FUEL AND OIL
CARBURETTOR AND INTAKESILENCER
ENGINE
PULLSTARTER
GEARBOX
PROPELLER
ELECTRIC
POWER IGNITION SYSTEM
E-STARTER
EXHAUST
THROTTLE RESPECT
THROTTLE AIRBOSS
HARNESS
CHECKLIST




To The Table Of Contents

 02

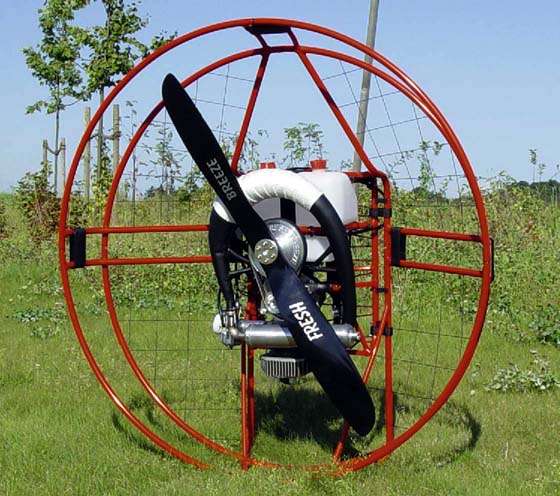

ASSEMBLY OF THE MOTOR

Open the pagage with care. Do not use long knife. Parts inside the carton could be damaged.
Check the parts and proof for completeness.
Bring the four cageparts together and fix with velcostraps.
Put the motor in front of the completed cage.

To The Table Of Contents

 03


ASSEMBLY OF THE MOTOR (2)

Take the motor and press the cage against the black clipse. Inside the black clips is a bolt which belong in the hole of the cage.
The cage should fixed against the frame with the velcro.
After assembling all velcros should tighten again.


To The Table Of Contents


 04


ASSEMBLY OF THE MOTOR (3)

The backstuffing will fixed also with velcro. The upper and lower ends from backstuffing turn arround the upper and lower rope.
In case that you have a shellform-backstuffing fix it on the left and rigth side.
The Shellform-backstuffing prevent that the motor will turn to cause from torc.


Most maintainance you can make by yourself with the original tools.



Contents:
  • Hexagon 4/5/6 mm
    		•
  • Wrench 8/10/24 mm
    		•
  • Wrench for sparking-plug and screw driver
    		•
  • Beltdressing
    		•

    To The Table Of Contents


     05


    TECHNICAL DATES

    Motor Solo 210ccm
    Type 2 Stroke,
    1 Cylinder
    Power 12 kW
    Cooling Air
    Starter Manuel / E-Starter
    Carburettor Bing 84,32mm
    Exhaust Resonator
    Propeller 2-Blade
    Diameter 38-48 inch (96-122 cm)
    Weight 50 lb (23 kg)
    Tank capacity 10 liter
    Max. take off weight 308 lb (140 kg)

    NEXT DATES ARE DEPEND FROM: WEATHER, ALTITUDE, PILOTS WEIGHT, GLIDER AND SIZE AS WELL AS ATMOSPHERIC HUMITY.

    Consumtion around 3 l/h
    Max. airborne time up to 3 h
    RPM 0-5800 1/min
    Staticthrust up to 132 lb (60 kg)
    Climbrate up to 2 m/sec.


    RESULT FROM THROTTLELEVER-POSITION, FLIGHT-LEVEL, GLIDER AND SIZE AND PILOTSWEIGHT FOR THE CONSUMTION.

    Little throttle less consumtion
    Big throttle high consumtion
    Low flightlevel less consumtion
    High flightlevel high consumtion
    Small glider high consumtion high speed
    Big glider less consumtion slow speed
    Leightweight pilot less consumtion slow speed
    Heavyweight pilot high consumtion high speed

    To The Table Of Contents


     06


    FUEL AND OIL

    The motor will delivered with two lids. The first is for flight with a small hole. The second lid is closed for transport. If you try to fly with the closed one the motor will have a "in flight shut down" after a while. It´s will establish inside the tank a vacuum. The carburettor get fuel from tank through gravity.







    The fuel comes from tank through this filter. Check before flight.










    This picture demonstrate a closed petroltap.



    IMPORTANT INFORMATION:

    The fuel should have 98 octane or 100 LL. The best oil is Castrol RS 2T. Mix 2 % in addition to the fuel.

    For the first 10 h mix 4 % in addition to the fuel. In this time use full throttle very careful.

    To The Table Of Contents

     07

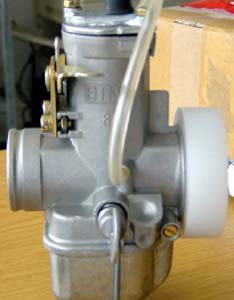

    CARBURETTOR AND INTAKESILENCER

    The Intakesilencer is fixed on two positions. One with a clamp on the carb and one with a rubberline on the top.
    In some flyingareas it´s necessary to use such a air filter. Use only original parts. Otherwise you risk to loose power.

    How I change the needle? Open the lid with the two screws and pull out all parts which are hanging on the cable.
    To The Table Of Contents

     08


    CARBURETTOR AND INTAKESILENCER (2)

    Press the spring together and loose the cable from slider. Now you hold slider and lid apart in your hand. The needle is now loose inside the slider. At our factory we installed the 6L1 in the second position from top.

    Here you see succsession from: Lid/spring/giude piece/needle with ring/slider.





    Why I should change the main jet? Each motor will checked and testet before he leave our factory. During this time we find the suitable jet. Nevertheless the motor is running bad at your first trial. At full throttle the motor runs rough (rpm less than 5600 1/min).

    The reason is: Other metrologic conditions, higher altitude, more humity, higher temperatur. Normally the main jet is 155. Replace this into a smaller one (150). You find this inside the toolbox.

    Attention: Do not loose the small red filter.






    How to change the mainjet? Press the bow back. With the 8 mm wrench screw out the jet.








    To The Table Of Contents

     09


    CARBURETTOR AND INTAKESILENCER (3)

    Overfloating Carburettor. Fuel comes out of the two small tubes. The two swimmer regulate the niveau inside the carb. To reduce the quantity in the carb bend the little tongue careful.
    If you hold the carb up side down, the swimmerforc is not parallel to the carburettorcase. If the carb overfloat while using the motor the forc should look a little bit more upward.

    Before you start the cold motor press down the choke. Start the motor and after a few seconds release the choke.






    The big screw regulate the idlerunning. Turning right - high rpm. Turning left - lower rpm. The idlespeed should round about 2600 1/min.



    The smaller screw is responsible for fuelmixture in idle. Turning right - rich. Turning left - lean.

    To The Table Of Contents

     10


    ENGINE

    This picture demonstrate the naked motor.

    In flight the motor will become very hot. The most stressed airea are the piston and the rings. Remove the exhaust and have a look to appearenced piston with it´s rings. Test it with screwdriver. The rings should be loose inside the slot.
    How to replace the piston? At first remove the four nuts from the feed of the cylinder.
    Now draw off the cylinder from piston.
    To The Table Of Contents

     11


    ENGINE (2)

    Before you pull out the gudgeon pin remove the safety rings on both sides. Than press out the gudgeon pin.
    This picture demonstrate the spezial tool how to remove the safety ring.
    The piostonrings can remove and replace by hand.
    To remove the head loose the 6 x 40 mm allen key screws. After that you can take away the head. To re-tighten this screw you need 14 Nm torc.

    To The Table Of Contents

     12


    ENGINE (3)

    How to clean the decompressionhole? After many hour in service time the decompressionhole will closed with carbon. If you use bad oil it will close earlier. Use the oil
    'RS 2 T'.
    To reopening the hole use a 3,5 mm drill. Bore from top and from inside the cylinderwall with an angle from 45°.

    To seal the head use our spezial high temperature liguidsealing.
    To The Table Of Contents

     13


    PULLSTARTER

    Replacment of the starterrope: Unsrew the starter-lid, take off the façade plus finger. The white disc should now be removed by pressing it against the tension-force.
    The white disc can now be taken out of the lid.
    The starter-rope can be pulled out of the disc.


    To give the starter-rope advanced tension one, place the rolled up into the slot and rotate three times.
    To The Table Of Contents

     14


    GEARBOX

    The power-transmission of the gears happens via a Poly V Belt (725 or 730 8 PK). The transmission ratio equals 1:2,57. The number of the revolution at full load equals 2350 rpm. The lifespan of the belt is aprox. 50-100 hrs. Too little tension shorthens the belt lifspan drastically.
    During maintenance check the belt before each flight. The belt should not be able to be turn over 45° degrees. After the first flight it is essential to pay special attention to the belt.
    How to tighten the belt?
    1. Loosen the central screw (24 mm)
    2. Lift the rotor-hub with the tension-screw (5mm) in order for the belt to either tighten or subside, thus the belt can be loosend.
    Turn right - belt tighten.
    Turn left- belt loosens.

    3. Tighten central screw (36 Nm) again.
    To The Table Of Contents

     15


    GEARBOX (2)

    How to replace the belt?
    1. Loosen the central-screw
    2. Loosen the belt with tension-screw.
    3. Screw in the piston-block into the spark-plug-hole
    4. Unscrew starter-pinion

    5. Take off belt.

    6. Place the new belt onto the pulley.

    The re-fitting happens in the revrese order.
    If the belt makes squeaking noises in spite of the proper tension, then spray twice onto the lower pulley. If the belt is slipping in spite of proper tension, then it needs to be replaced.
    To The Table Of Contents

     16


    PROPELLER

    The propeller consist of the two parts which, put together, measure up to 122 cm in lengh. The weight is ca 900 gram. The propeller is made of gfk or cfk, which allow for small repairs. But it is essential that after repair is accomplish, the propeller gets balanced out again.
    The propeller is fixed onto the hub with 6 screws. Tighten the propeller, use 12 Nm torc.
    How to balanced out the propeller? The propeller has to be placed vertically onto the balancing-out equipment. If turns to one side, then drill a 3,5 mm hole into the lighter half of the propeller.
    Then fill only as much resign into this hole until the propeller doeas not want to turn to one side only.






    To The Table Of Contents

     17


    PROPELLER (2)

    Likewise proceed as above in the horizontal position.
    Attention: An imballanced propeller created unnessecary vibration in the engine and can destroy many of it´s components.


    Required materials for repairs and balancing-out
    The propeller balancing-out-resing with hardener, syringe and a stored shaft for a free turning of the propellerblades.

    What do I require for repairing the propeller.
    Fiberglas-spatula and abrasive paper.

    Here now an example when a propellerblade must not be repaired again. If the damage is to large, then repair are dangerous. The repairs sopt has not enough grip and may fall off whern the propeller turns at high revolution. Danger of accident is thus programmed.




    To The Table Of Contents

     18


    ELECTRIC






    To The Table Of Contents

     19


    POWER IGNITION SYSTEM

    The engine is equiped with a powerful and service free ignition system. It consist of the components: stator, loading-coil of the ignition, generator coil for the supply of electricity and rotor. To be able to work on the coils,the following should be taken care off.
    Remove the complete ignitionbox including the lid of the starter. Now the rotor with the starter-pot is visible which is held into place by it´s central screw.
    Once the central screw has been removed, the rotor can then be pulled off via a puller. Because the rotor has to be in a specific position to the crankshaft, the rotor with a suspension-disc on the crankshaft is preordained.
    To fine-tune the ignition timingpoint one has to loosen the two security screws of the stator. Turn the stator to the left maximally to the furthest point, now turn ca 2 mm to the right again. Retighten the security screws. The ignition timingpoint has now its correct adjus- tment. When reassembling take special care of the correct distance of the contact-test that the distance of 0,25 mm is observed and if nessecary readjust.
    To The Table Of Contents

     20

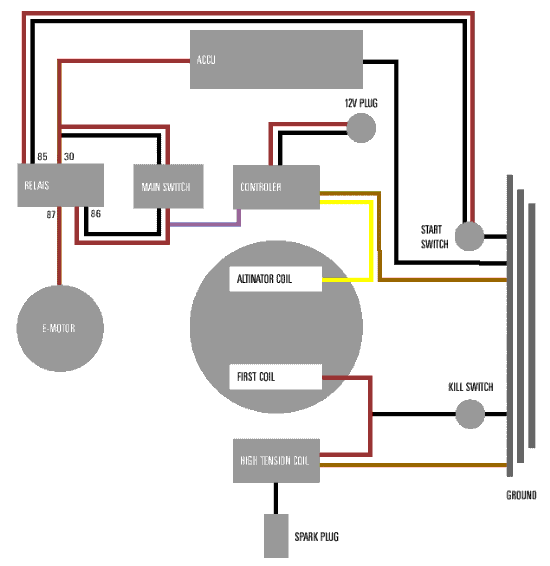

    E-STARTER

    If the engine is equipped with an e-starter, the power can be turned on just by pressing the botton on the throttle.The accu is fixed on the side of the frame and sits in a holster. The accu-pack consist
    14 x 1,2 Volt Nicad cells with max 1700 mAh.
    The cogwheelplay of the e-starter should be checked after dismanteling the e-motor and need returning if nessecary. In order to accomplish this the M4 screws and the security clamp needs to be loosened. The e-motor can now be adjusted. The individual theeth of the cog should engage properly. To little cogwheelplay prohibits the light/smooth running of the cogs at the start. Is the cogwheel too large, then the theeth of the pinion will die to early. The cogwheelplay could change again after tightening, then a re-check is essential.
    Beside the Accuholster there is a switch with 0 and 1.
    Set on 0 the engine can´t be left running on the e-starter. Set on 1 the e-starter is functioning and ready to go.
    The Accu will only charged while running and with the switch on at the position 1. Look to the backside of the aluplate you see the controler with the coolingrips.
    Via this plug a voltage can be transmitted. The dynamo has a limit of max. 24 VA.
    To The Table Of Contents

     21


    EXHAUST

    The engine is equipped with a resonance exhaust which allows for an increase of performance and a decrease of excess noise. The white wrap around tape is made of fiberglass and gummen up with silicon.
    The complete exhaust is suspended flexibly as to prevent vibrational eruptions.
    To keep the exhaust flexibly mobile we chose different types of fixtures. One is a rubber connection on the gear-plate and two a stress-bearing spring-gasket at the entry and the exit.
    After 10 hrs the sealing-rings and their fasten screws needs to be checked. The screw you have to changes each 25 hrs.
    To The Table Of Contents

     22


    THROTTLE RESPECT

    The throttle is taken according to the building kind into the right or left hand. The strap has a variable seize change. Before start the strap should be attracted firmly.
    The Respect-thorttle-lever has in each case a switch at the tube. The one is for the starting the engine, and ...
    ... the other one for killing the engine.
    The thottle has also a travelling locking. After reaching the desired hight of flight,the throttle can be fixed via the clasp-lever. Since long holt of the throttle is hard in hand, the throttle can be placed in position onto the legs. The hand are now free for other things.
    To The Table Of Contents

     23


    THROTTLE AIRBOSS

    The Airboss throttle-lever has also a button for killing the engine and where approbiate about one for starting the engine, if an electric starter is available.
    First the throttle is taken into the hand, and ...
    ... after that the steering line and at last the A-riser are grasped.
    This picture clarifies the handling of the riser and the throttle during the start.
    To The Table Of Contents

     24


    HARNESS

    This harness is specially constructed for motoring enterprises. Throughout the usage of the machine, ensure that no lose ends are able to get into the propellerblades. The suspension for pilot can be permanently in the snap links.
    The harness is secured via 3 springlocks; tow legs spring and one breast spring lock. It has two adjsutments possibilities. One there are the buckles which are fastenen onto the front of the seat. At the start these should be pulled on lightly, as to make the climbing into the harness easier at the lift-off. Before landing it is advisable to lower the seat fully, to enable a maximal favourable touch-down position. The leg loop does not need to be pulled too tightly.
    All other adjustment options are regulated while flying. Are the straps pulled rigth and left, then one sits up straight, are they loose a slight back prone position can be adopted.
    The harness has also two pockets, which are easily reached at flight.
    To The Table Of Contents

     25


    HARNESS (2)

    Now one kneels in front of the engines and pulls the carrying straps over the shoulders.



    Thereafter the pilotsuspension has to be hang into the dropping device of the engine. Usally the hind most hole is used for this.

    The dropping device should be activated at pending danger, for example at a water landing, fire at high altitude or a tree touchdown. The activation occurs when the two strings of the dropping device are pulled outwards.

    Because the engine is now not hanging over the suspension of the chute anymore, the pilot will be in a brought into a strong reclining position. Thus the engine can now slide easily over the shoulders. The landing proceeds from now on without the engine.


    To The Table Of Contents

     26


    HARNESS (3)

    Now one get up with the whole engine and goes to the glider. The glider will then be hang into the springlocks for the pilots suspension.
    After all has been done, the throttle and the break-loop had to be taken into the hand. The engine will now be started and the starting run can begin.


    RESCUE SUSPENSION

    The picture shows an example of how to fasten the recuedevice using the V-line. The rescuedevice should be connect with the pilot suspension using the V-line. So it´s an optimal landing position in case of a possible release. The rescuedevice should not be hung in the harness using the spring hooks, because of supine in rescue release.

    To The Table Of Contents

     27


    CHECKLIST

    CHECK BEFORE EACH FLIGHT:

    • CAGE SECURED ON THE FRAME
    • CAGE IN GOOD SHAPE
    • PROPELLER-CLEARANCE
    • PROPELLER WITHOUT FREE SPACE
    • PROPELLER WITHOUT DAMAGE
    • BELT AND TENSION ENOUGH
    • KILLSWITCH O.K.
    • FUEL MIN.98 OCTANE OR HIGHER
    • FUEL TANK LEAKY
    • PILOT SUSPENSION AND STRAP WITHOUT STRESSMARKS
    • SPARKING PLUG AND WIRE WELL FIXED
    • TANK-LID WITH SMALL HOLE ON THE TANK
    • PROOF GLIDER, LINES AND RISER FOR STRESSMARKS OR DAMAGES
    • INTAKESILENCER AND IT´S FIRMNESS
    • FULL RPM MIN 5600 1/MIN


    CHECK ALL 10 HOURS:

    • FUEL FILTER
    • CLEAN THE CARBCHAMBER
    • BELT
    • EXHAUST INCL. THE SELAINGRINGS AND THE SCREWS
    • ALL CONNECTION FROM THE WIRES
    • CHECK ALL 50 HOUS
    • REPLACE THE BELT
    • METAL-WIRE FROM THROTTLE
    • REPLACE THE SPARKING PLUG AND THE CONNECTOR
    • REPLACE ALL RUBBERJOINT FROM EXHAUSTSYSTEM
    • REPLACE THE SEALINGRINGS AND THE SCREWS
    • CHECK ALL SCREWS


    CHECK ALL 100 HOUS:

    • CLEANING THE DECOMPRESSIONHOLE INSIDE THE CYLINDER
    • PISTONRINGS
    To The Table Of Contents

     28


    CHECKLIST (2)



    CHECK ALL 300 HOURS:

    • THE ENGINE AND HIS COMPONENTS SHOULD SEND TO THE MANUFACTURING FOR GENERAL MAINTENANCE

    GLIDER:

    THE GLIDER SHOULD BE CHECKED ALL 2 YEARS. SEND TO THE MANUFACTURER.


    MOTOR:

    THE ENGINE SHOULD BE CHECKED EACH YEAR ALIKE HOW MUCH HOURS IT´S USED.

    To The Table Of Contents
